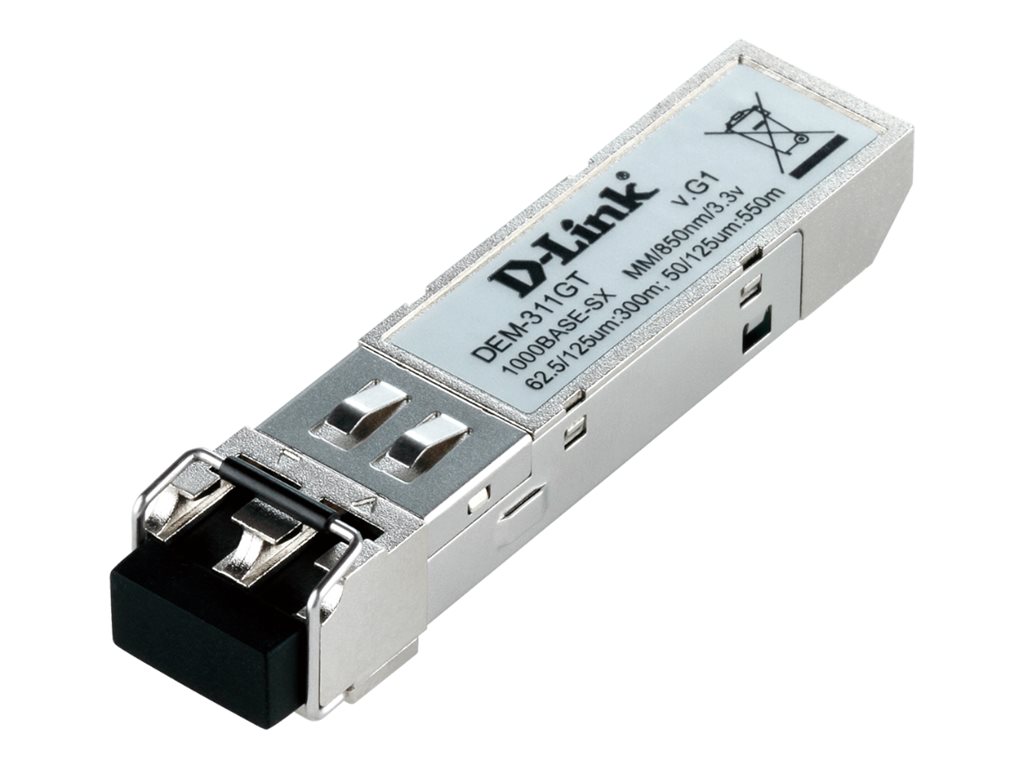

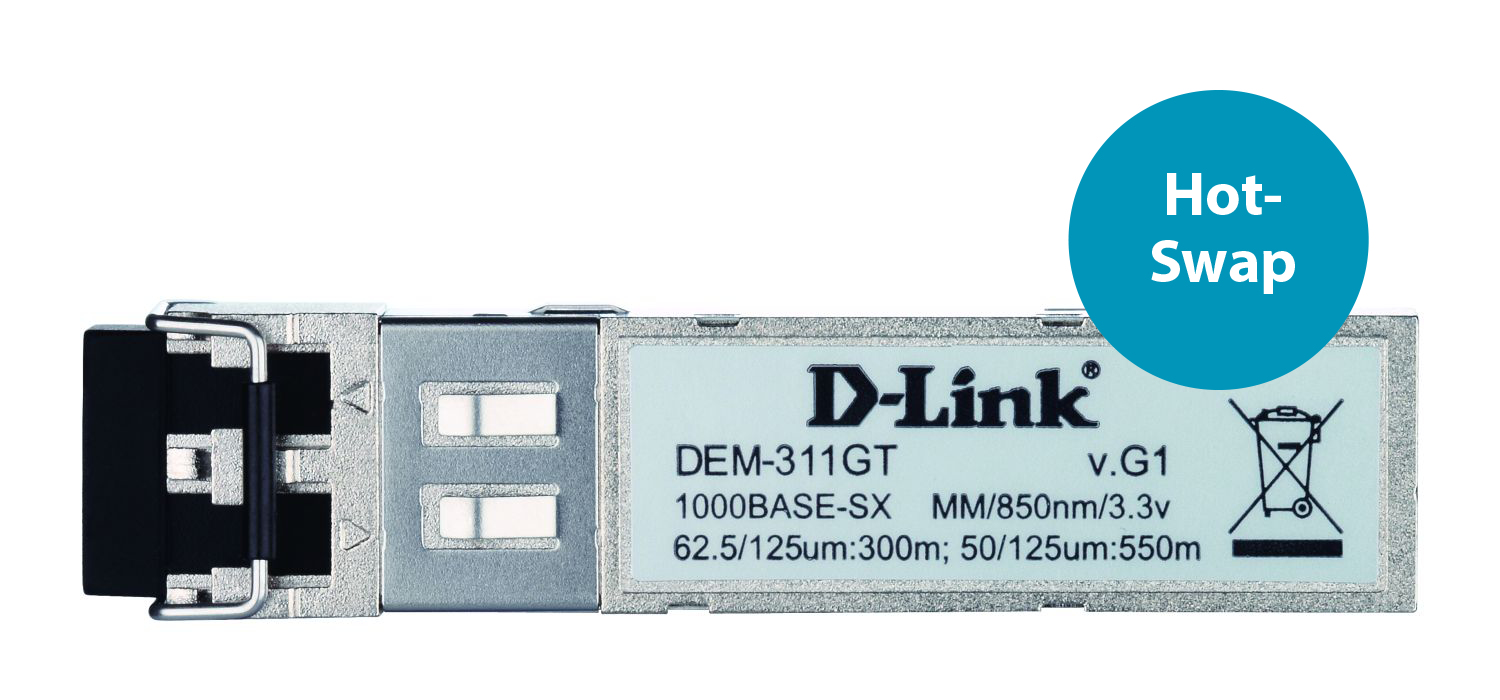

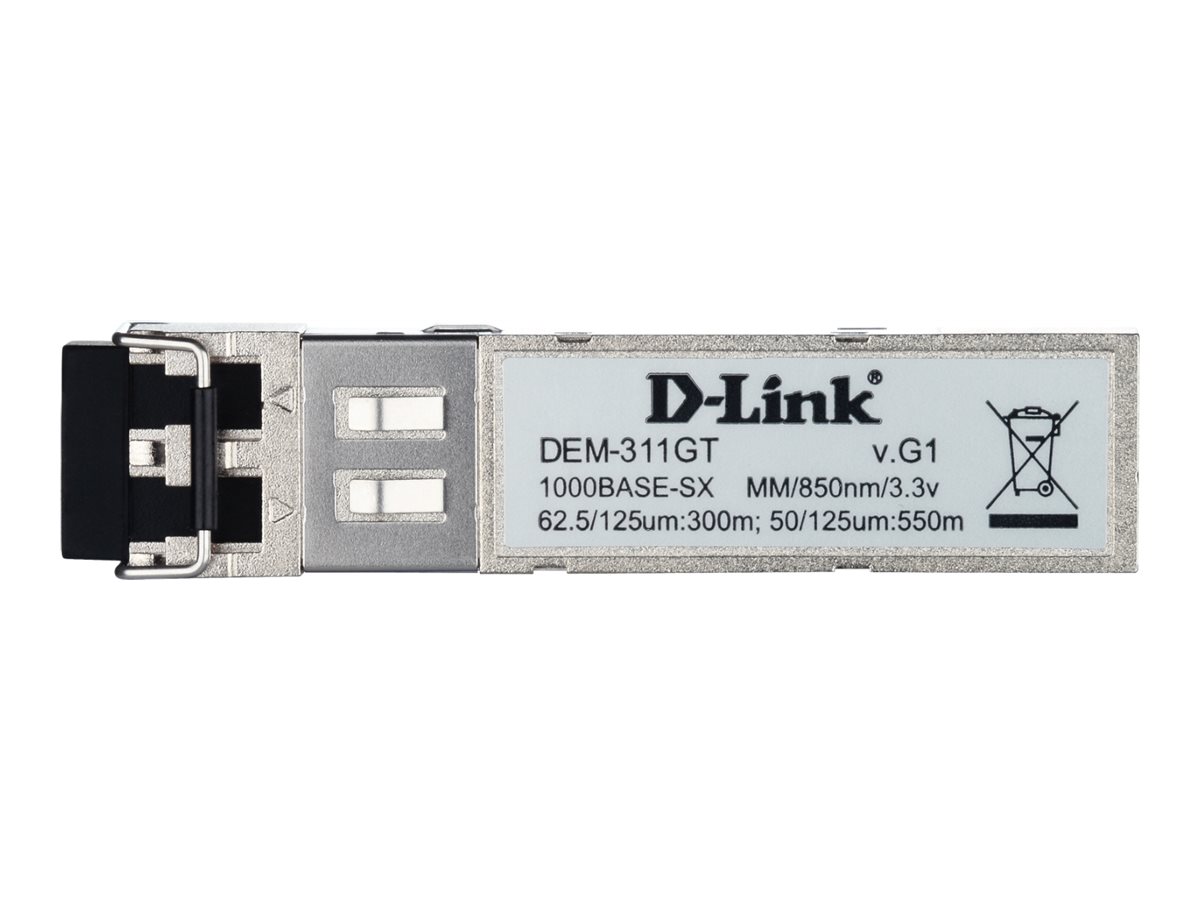

D-LINK DEM-311GT 1-Port Mini GBIC Transceiver für 1000BaseSX LC-Duplex IEEE 802.3z MM Fiber 62,5 bis 220m MM Fiber 50,0 bis 550m

1GbE - 1000Base-SX - LC Multi-Mode - bis zu 550 m - 850 nm - für DGS 12XX; DXS 1100 - 1210 - 3400 - 3600; Nuclias Cloud-Managed DBS-2000-10 - 2000-28 - 2000-52
38,65 €
Sofort verfügbar, Lieferzeit: 1-3 Tage
Vorteile
- Mini GBIC Transceiver
- 1000BaseSX (LC-Duplex) max 550m 1x 1000 Mbit Multimode Fiber SX (LC-Duplex) Port
- Multimode Fiber 50/125µm bis zu 550m
- Multimode Fiber 62.5/125µm bis zu 220m
- Full-Duplex, 802.3x Flow-Control
- Hot-Swappable
Beschreibung
Produktinformationen "D-LINK DEM-311GT 1-Port Mini GBIC Transceiver für 1000BaseSX LC-Duplex IEEE 802.3z MM Fiber 62,5 bis 220m MM Fiber 50,0 bis 550m"
850nm Wellenlänge Laser Klasse 1 (EN 60825-1), IEEE 802.3z Standard kompatibel, max. 550m (50/125µm) bzw. 300m (62,5/125µm), IEEE 802.3x Flow-Control im Full-Duplex Betrieb, passend für alle D-Link Switches mit SFP Transceiver Slots
Eigenschaften
Portzahl: | 1 |
---|---|
Typ: | Transceiver |
Übertragungsrate: | 1Gbps |
Datenblatt
Allgemein
Gerätetyp
SFP (Mini-GBIC)-Transceiver-Modul
Formfaktor
Plug-in-Modul
Netzwerk
Anschlusstechnik
Kabelgebunden
Verdrahtungstyp
1000Base-SX
Data Link Protocol
1GbE
Datenübertragungsrate
1 Gbps
Optische Wellenlänge
850 nm
Maximaler Übertragungsbereich
550 m
Erweiterung/Konnektivität
Schnittstellen
1 x Ethernet 1000Base-SX - LC multi-mode x 2
Kompatible Steckplätze
1 x SFP (mini-GBIC)
Informationen zur Kompatibilität
Entwickelt für
D-Link Data Center 10GbE Top-of-Rack Switch DXS-3600
D-Link DES 1210, 1226G, 3010G, 3028, 3028P, 3052, 3052P, 3250TG, 3350SR, 3526, 3550
D-Link DGS 1024T, 1210-10P/ME, 1216T, 1224T, 1248T, 3100-24, 3100-24P, 3100-24TG, 3100-48, 3100-48P, 3200-10, 3200-16, 3224TGR, 3312SR, 3324SR, 3324SRi, 3630-28SC, 3630-28TC, 3630-52TC
D-Link DWS 3024L
D-Link DXS 1100-16SC, 1210-12SC, 1210-16TC, 3400-24SC, 3400-24TC, 3600-16S
D-Link L2+ Gigabit Wireless Switch DWS-3024
D-Link Nuclias Cloud-Managed DBS-2000-10MP, DBS-2000-28MP, DBS-2000-52MP
D-Link Web Smart DES-1228, DES-1252, DGS-1216T, DGS-1224T, DGS-1248T, DXS-1210-12TC
D-Link xStack DES-3526, DES-3528, DES-3528P, DES-3552, DES-3828, DES-3828DC, DES-3828P, DES-3852, DGS-3426, DGS-3426P, DGS-3427, DGS-3450, DGS-3612G, DGS-3627, DGS-3627G, DGS-3650, DXS-3326GSR, DXS-3350SR
D-Link DES 1210, 1226G, 3010G, 3028, 3028P, 3052, 3052P, 3250TG, 3350SR, 3526, 3550
D-Link DGS 1024T, 1210-10P/ME, 1216T, 1224T, 1248T, 3100-24, 3100-24P, 3100-24TG, 3100-48, 3100-48P, 3200-10, 3200-16, 3224TGR, 3312SR, 3324SR, 3324SRi, 3630-28SC, 3630-28TC, 3630-52TC
D-Link DWS 3024L
D-Link DXS 1100-16SC, 1210-12SC, 1210-16TC, 3400-24SC, 3400-24TC, 3600-16S
D-Link L2+ Gigabit Wireless Switch DWS-3024
D-Link Nuclias Cloud-Managed DBS-2000-10MP, DBS-2000-28MP, DBS-2000-52MP
D-Link Web Smart DES-1228, DES-1252, DGS-1216T, DGS-1224T, DGS-1248T, DXS-1210-12TC
D-Link xStack DES-3526, DES-3528, DES-3528P, DES-3552, DES-3828, DES-3828DC, DES-3828P, DES-3852, DGS-3426, DGS-3426P, DGS-3427, DGS-3450, DGS-3612G, DGS-3627, DGS-3627G, DGS-3650, DXS-3326GSR, DXS-3350SR
