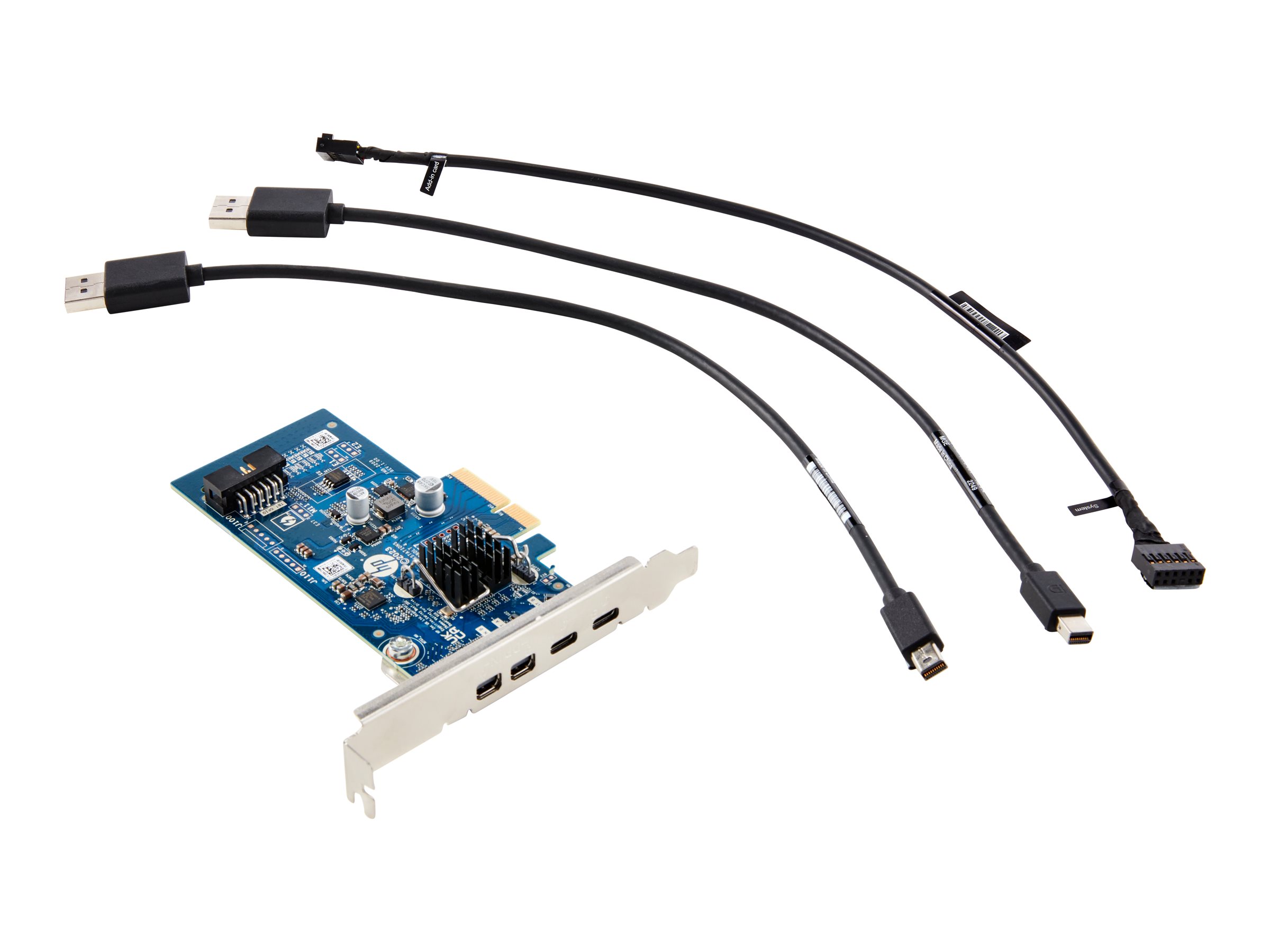

HP Dual TBT4 PCIe x4 Low Profile Card

Thunderbolt 4 x 2 - für Workstation Z4 G5 - Z6 G5 - Z8 Fury G5 - Z8 G5
131,73 €
Beschreibung
Produktinformationen "HP Dual TBT4 PCIe x4 Low Profile Card"
HP Thunderbolt-Adapter - PCIe x4 Low-Profile
Eigenschaften
Einsatzbereich: | Sonstige Einsatzbereich |
---|---|
Netzwerkstandards: | ab 6 h |
Typ: | Kabel |
Video/Netzwerk-Schnittstellen: | Thunderbolt |
Datenblatt
Allgemein
Gerätetyp
Thunderbolt-Adapter
Formfaktor
Plug-in-Karte - Low-Profile
Schnittstellentyp (Bustyp)
PCI Express x4
Netzwerk
Ports
Thunderbolt 4 x 2
Anschlusstechnik
Kabelgebunden
Data Link Protocol
Thunderbolt 4
Datenübertragungsrate
40 Gbps
Erweiterung/Konnektivität
Schnittstellen
2 x Thunderbolt 4 - 24 pin USB-C
2 x Mini-DisplayPort-Eingang
2 x Mini-DisplayPort-Eingang
Verschiedenes
Enthaltene Kabel
2 x Mini-DisplayPort-Kabel
1 x GPIO-Kabel
1 x GPIO-Kabel
Kennzeichnung
CB, NTRL, FCC Klasse B bescheinigt, UL, ICES-003, BSMI, VCCI, KCC, UKCA
Software / Systemanforderungen
Erforderliches Betriebssystem
Windows 11 Pro, Windows 10 Pro
Maße und Gewicht
Breite
12.1 cm
Tiefe
2.53 cm
Höhe
14.4 cm
Gewicht
97 g
Informationen zur Kompatibilität
Entwickelt für
HP Workstation Z4 G5, Z6 G5, Z8 Fury G5, Z8 G5
Lieferumfang
- Garantiekarte
- GPIO-Kabel – Menge 1
- HP Dual TBT4 PCIe x4 Low-Profile-Karte mit Halterung in voller Höhe Mini-DP-Kabel Menge 2
- Installationshandbuch
- Produkthinweise
